System Format
3-way
Frequency Response (-6 dB)
30 Hz - 50 kHz
Sensitivity (1W@1M)
90 dB
Nominal Impedance
4 Ohms
Minimum Impedance
3.5 Ohms @ 1 kHz
Maximum SPL
117 dBA (Pair)
Power Handling (RMS)
250 W
Recommended Amplifier Requirements
100 - 250 W
Bass Alignment
Bass Reflex

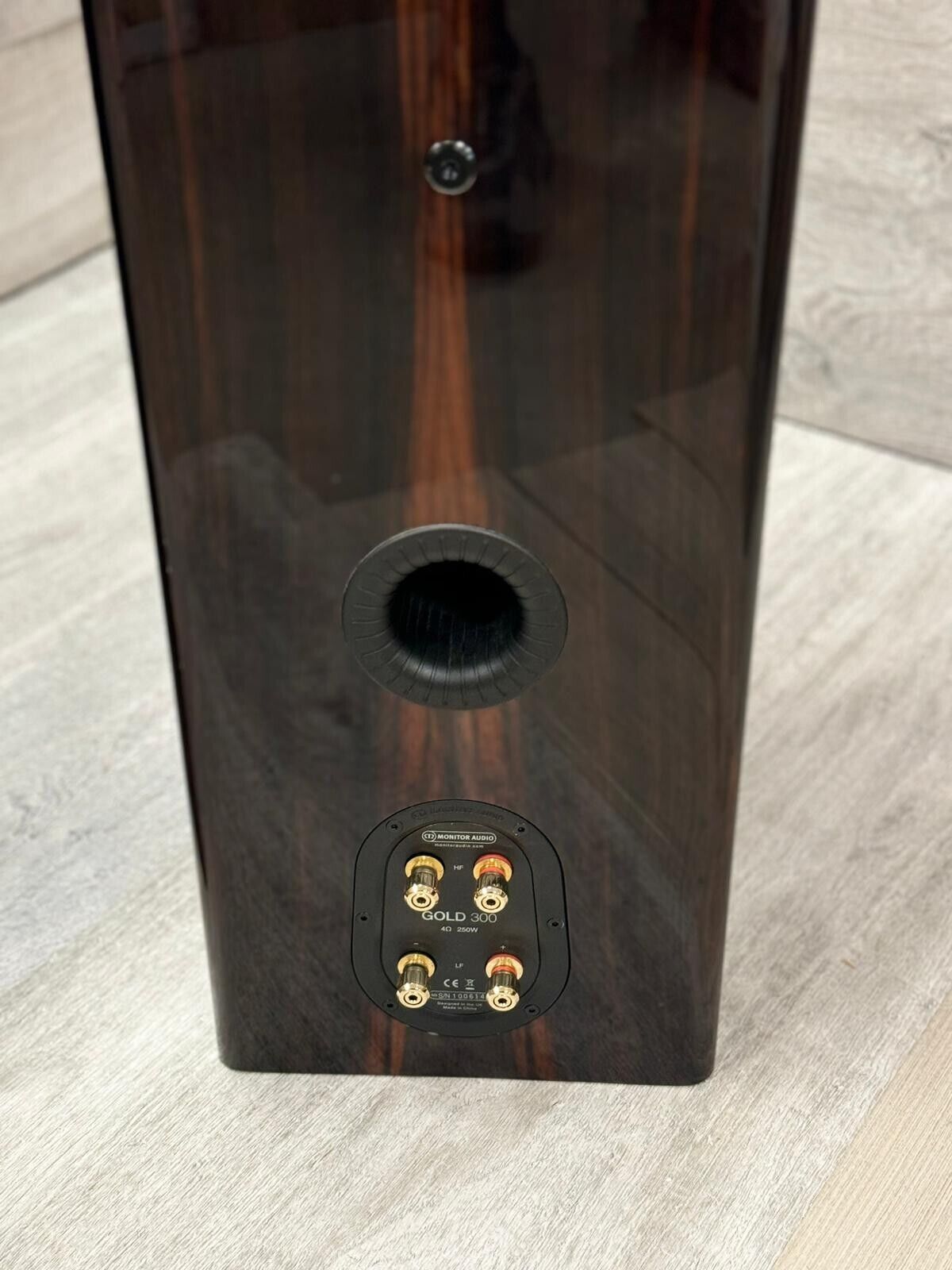

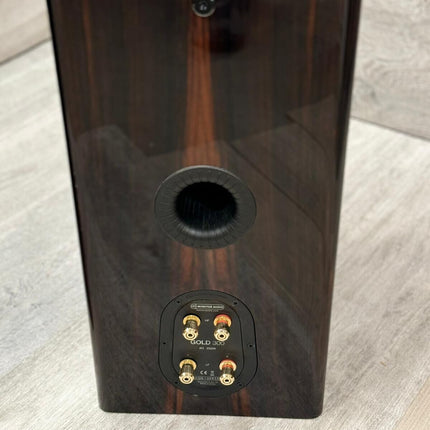

Dual HiVe II port system
Crossover Frequency
L.F/ M.F: 650 Hz
M.F/ H.F: 3 kHz

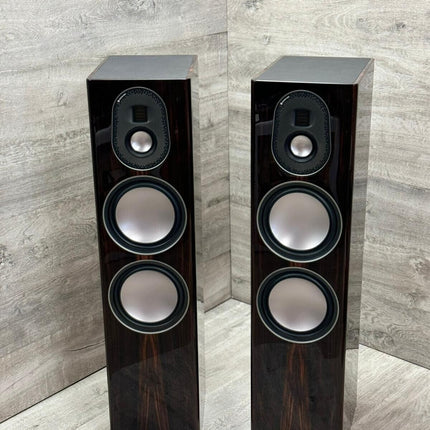

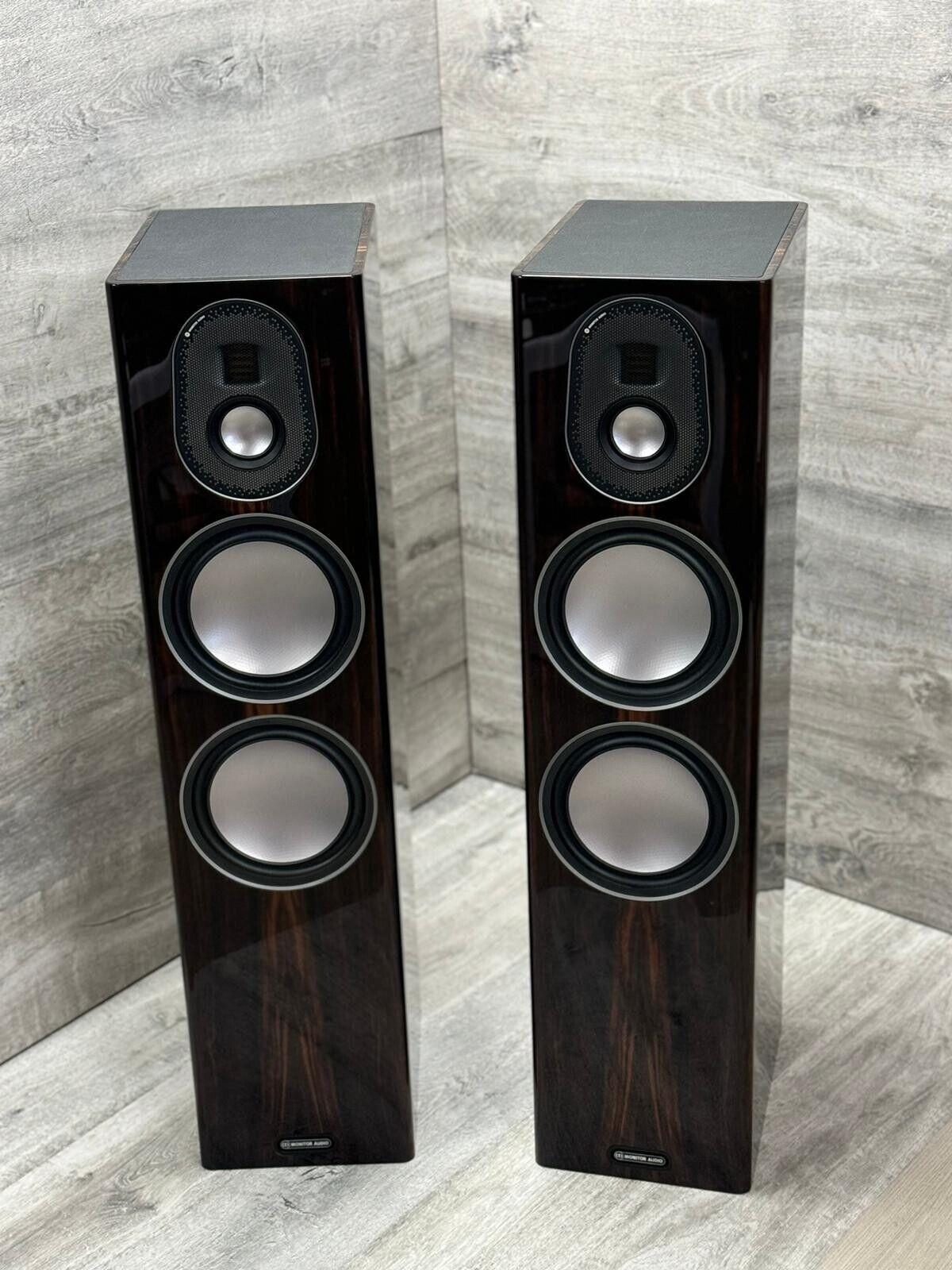

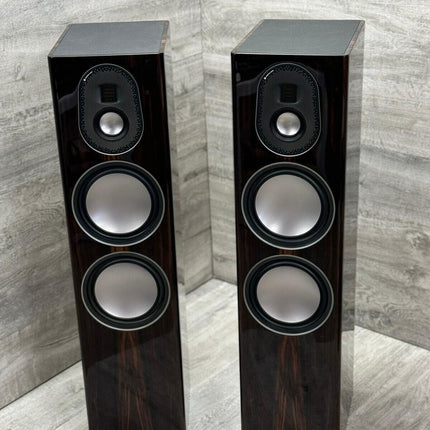

Drive Unit Complement
2 x 8" RDT II long-throw bass driver
1 x 21/2" C-CAM mid-range driver
1 x MPD high-frequency transducer
External Dimensions (Including Grille and Terminals (H x W x D))
1000 x 240 x 360.6 mm (393/8 x 97/16 x 143/16")
External Dimensions (including Outrigger Feet and Spikes (H x W x D))
1047 x 327.8 x 417.8 mm (411/4 x 127/8 x 167/16")
Weight (each)
30.56 kg (67 lb 4 oz)
